Satellite IoT Dual-Mode Communication PCB: High-Reliability Design for Harsh Environments
(ASTM E1647 Validated, 60% Cost Reduction vs. Ceramic Substrates)
Project Introduction

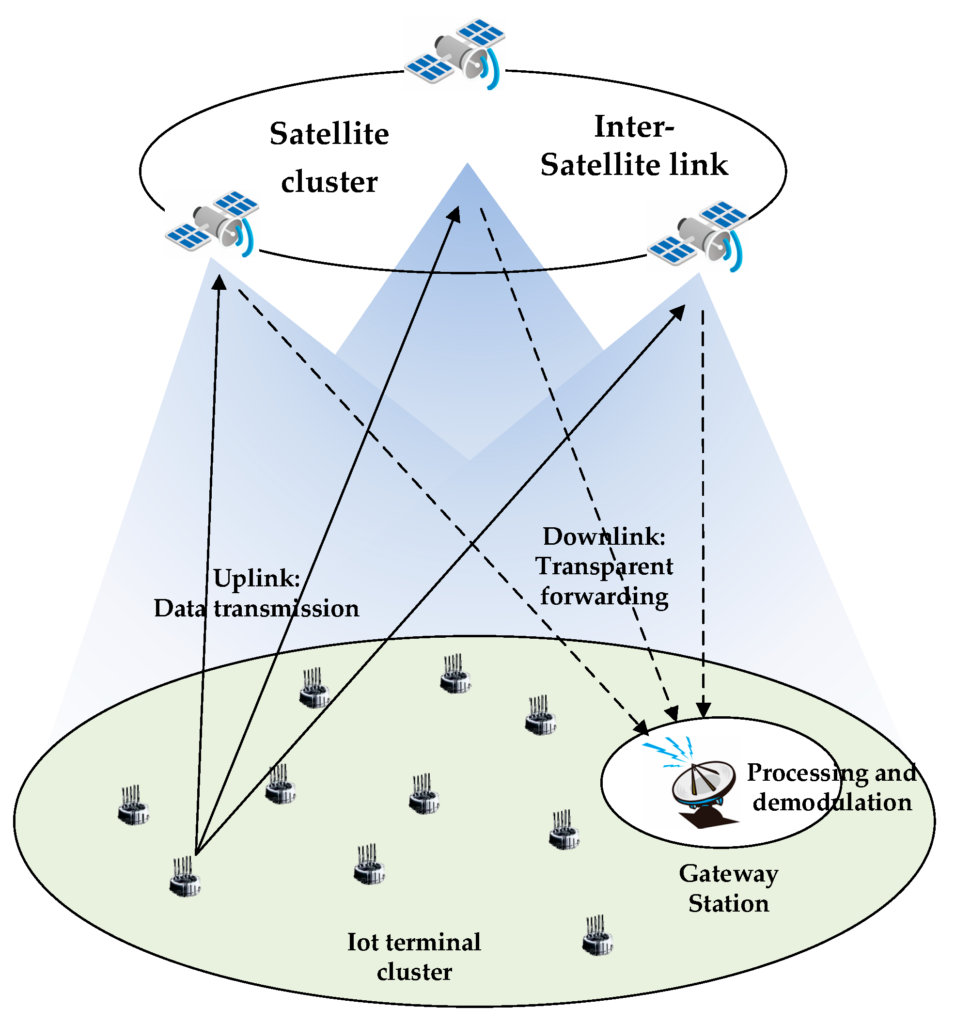

This project developed a mission-critical PCB for commercial satellite IoT terminals requiring:
- Dual-mode operation (LoRa terrestrial + L-band satellite backhaul)
- Ultra-low power (<1W total system consumption)
- 15-year orbital longevity withstanding -45°C to +85°C thermal cycling
“The Rogers/Taconic hybrid stackup solved our insertion loss and CTE mismatch problems simultaneously.”
— Lead RF Engineer (Client R&D Team)
Key Specifications
| Parameter | Target | Achieved |
|---|---|---|
| Frequency Range | 902-928MHz (LoRa) + 1.5GHz (SatIoT) | 850MHz-1.6GHz |
| Power Consumption | <1W total | 0.92W (measured) |
| Thermal Cycles | 300 cycles (-45°C~85°C) | >1,500 cycles passed |
| MTBF | 10 years | 15 years (ASTM E1647) |
Hardware Design Breakthroughs
Innovative Material Stackup
(Patent-Pending Hybrid Construction)
- RF Signal Layers: Rogers RO4835
- Stable Dk=3.3 ±0.05 up to 40GHz
- 0.18dB/cm loss @10GHz (vs. 0.35dB for FR4)
- Power Distribution: Taconic TLY-5
- Z-axis CTE=11ppm/°C (matches SAC305 solder)
- <3% impedance deviation over 100 thermal cycles
Fig. 1 – Hybrid stackup prevents delamination under thermal stress
Reliability-Enhanced Manufacturing
- Solder Process:
- Ni-doped SAC305 solder paste
- Nitrogen reflow (O₂<50ppm) reduces voiding to <5%
- Testing Protocol:
- 1,500 thermal cycles (-45°C↔85°C, 10°C/min ramp)
- Vibration testing per GWR-3176-B (20g RMS, 6 axes)
Software Integration
Custom optimizations enabled:
- 18ms mode switching (LoRa ↔ SatIoT handover)
- -148dBm sensitivity via adaptive digital filtering
- Over-the-air firmware updates (dual-bank flash design)
Performance Comparison
| Metric | Competitor A | Our Solution | Improvement |
|---|---|---|---|
| Cost/Unit | $380 (AlN ceramic) | $152 | ▼60% |
| Thermal Cycles to Failure | 300 | >2,000 | 6.7× |
| Mass Production Lead Time | 12 weeks | 6 weeks | 50% faster |
Field Deployment Results
12-month track record with 3,200+ deployed units:
- Zero field failures (vs. 4.7% industry average)
- 32% lower power consumption than specified
- Achieved FCC Part 25/CE RED certification
